KF 2

ICS

Carl Zeiss

B 40-028 e 10/97 2-3



START-UP

2.1 Installation of the instrument

The KF 2

ICS

microscope, including accessories, is delivered in standard packaging. We would

recommend you to keep the packaging material so that the instrument can be stored for a longer period

of time or returned to the manufacturer.

(1) Preparations

Remove the microscope from the transport case and place it on the worktable.

(2) Attachment of binocular tube 45°/20

ICS

Loosen hexagonal screw (2-1/2) using the SW 3

ball-headed screwdriver. Slightly incline the tube

(2-1/1) and insert it into the stand via its dovetail.

Turn the tube in the required observation position

and tighten the hexagonal screw.

The eyepiece distance is matched to the

individual interpupillary distance by swinging

the eyepiece tubes symmetrically towards one

another.

A higher (2-2/A) or lower (2-2/B) viewing height

is achieved by swiveling the tube.

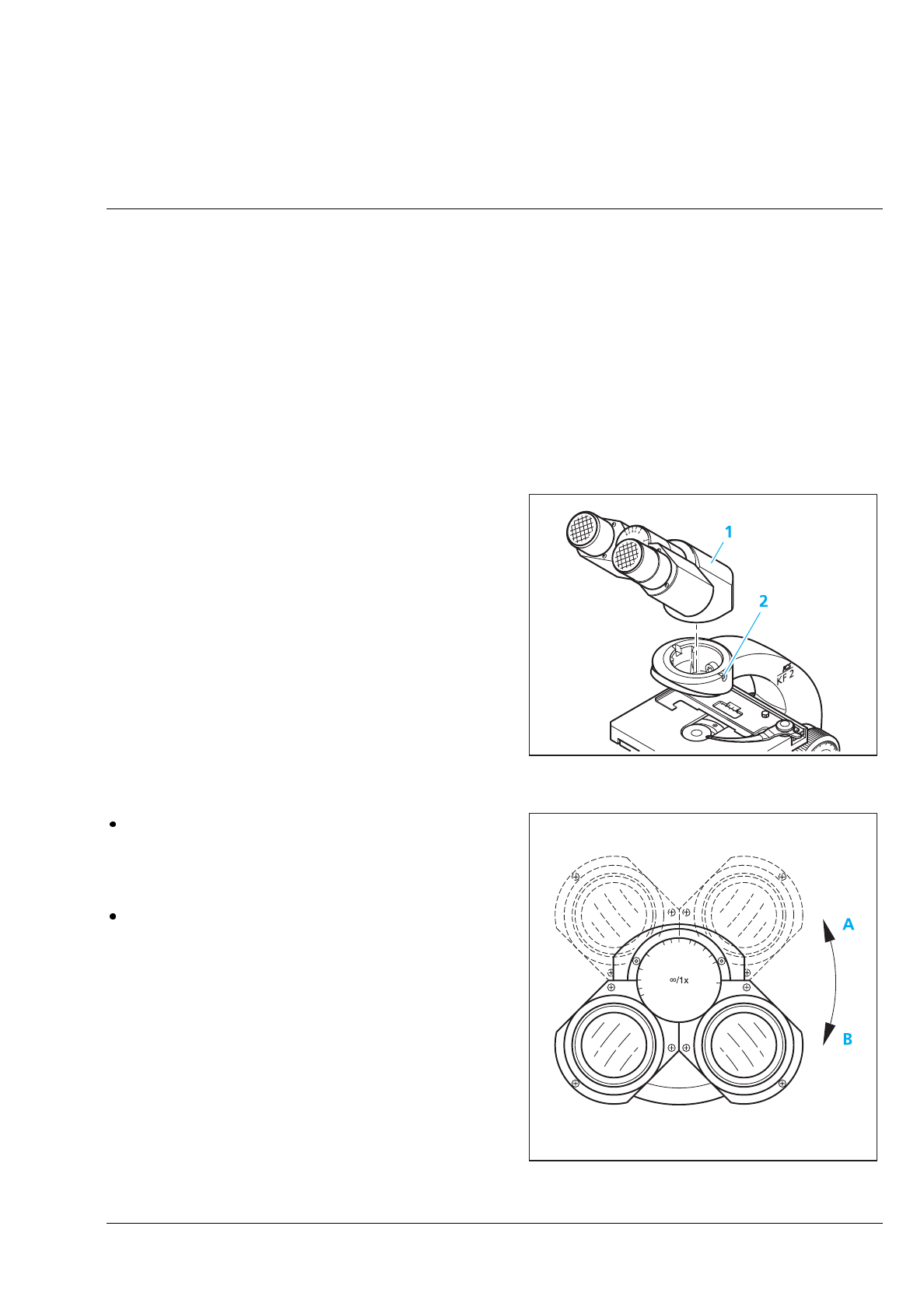

Fig. 2-1 Attachment of binocular tube

Fig. 2-2 Positions of the binocular tube
